Space to roam.

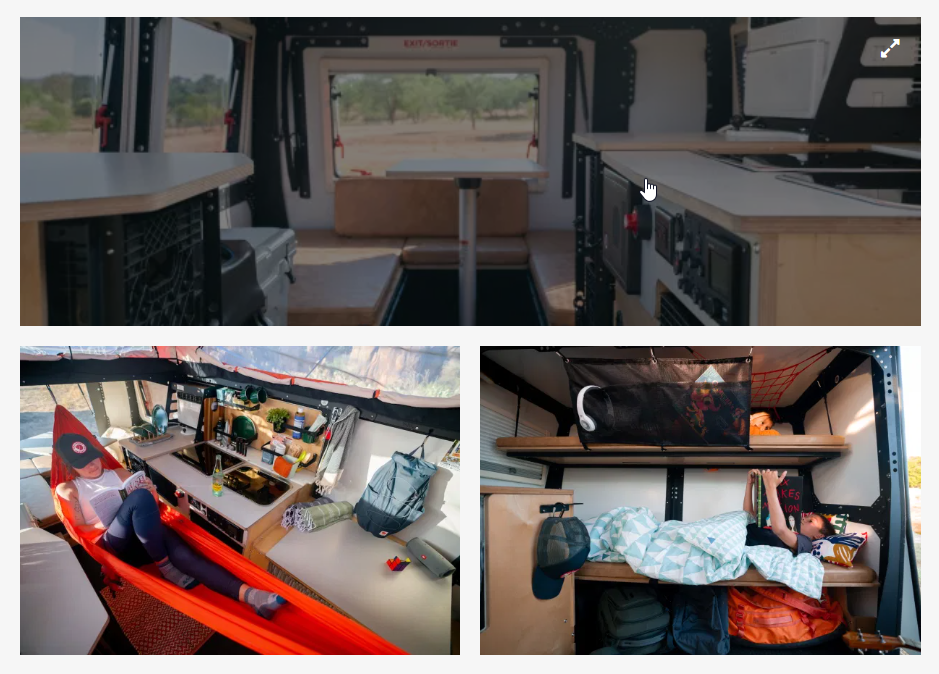

Whether you need a little more space for the family, pets, or adventure toys, Mantis is the outdoor habitat for you. Thoughtful design around the choreography of life in a small space led to features like a full galley kitchen, separate sink, and two-burner stove, water heater, 20-gallon freshwater capacity, and wet bath with cassette toilet. With adaptable spaces, multi-purpose storage, and sleeping space for 4+ adults, you can hitch up and ditch the everyday in style!

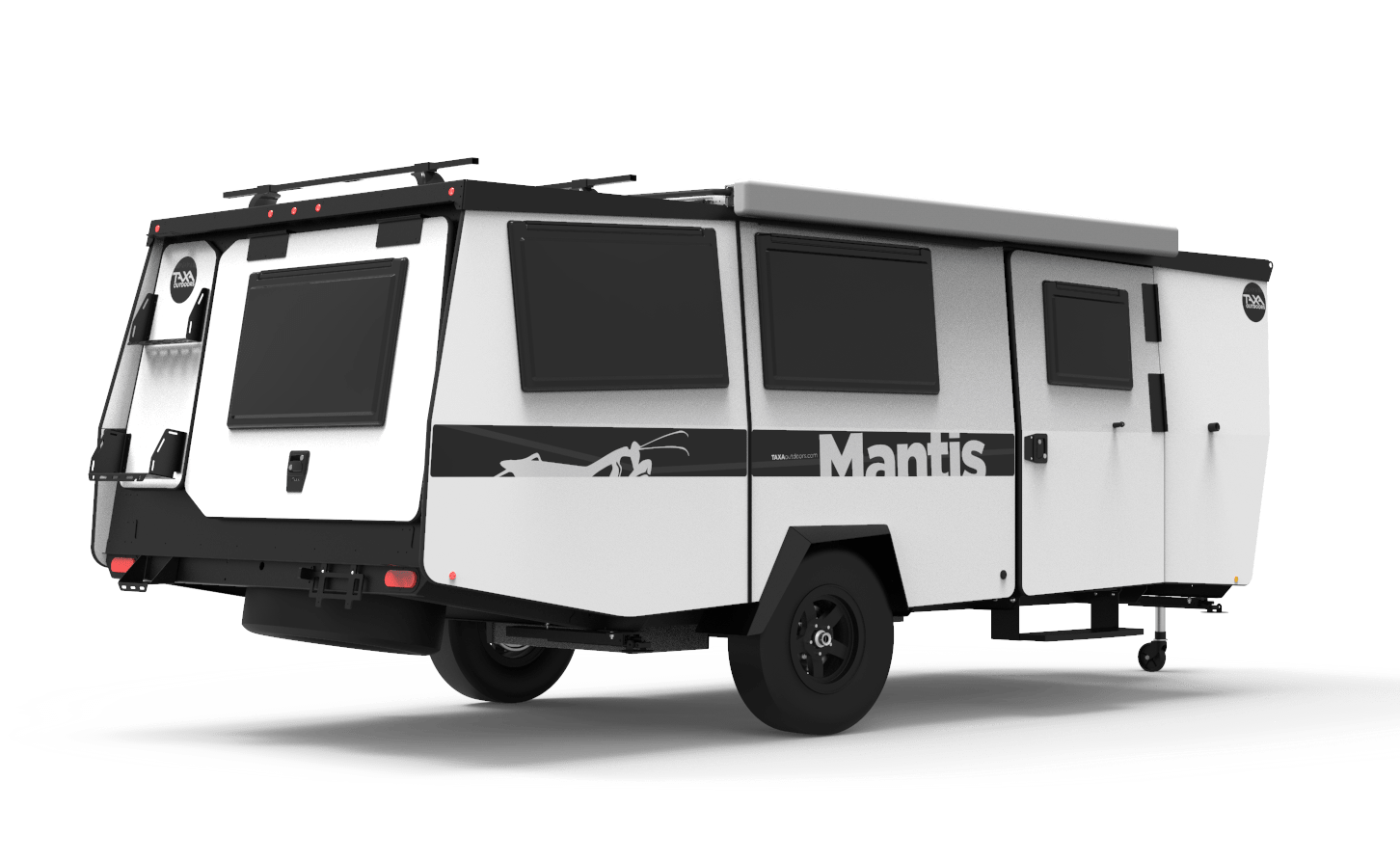

MANTIS Specifications
| Exterior Length | 19′ |
| Exterior Width | 7’6″ |
| Exterior Height (closed) | 6’10” |
| Exterior Height (open) | 10′ |
| Interior Width (max) | 6’10” |
| Interior Height (closed) | 4’7″ |
| Interior Height (open) | 5’11” to 7’10” |
| Bed Dimensions (max width) | 78″x54″ |
| Bunk Bed (top) | 76″x22″ |
| Bunk Bed (bottom) | 77″x26″ |
| Fresh Water Tank | 20 gal |
| Grey Water Tank | 22 gal |
| Tires | 235/75R15 |
| Ground Clearance | 12″ |
| Tongue Height | 20″ |
| Tongue Length | 44″ |
| Tongue Weight (depends on loading) | 435 lbs |
| Dry Weight | 2,972 lbs |
| GVWR | 4,200 lbs |
| GAWR | 4,000 lbs |
| Cargo Capacity | 1,028 lbs |
| Habitat Capacity | 4+ Adults |
| Aluminum Panels | Aluminum Alloy ASTM B 209 |
| Square Footage | 105 sq ft |

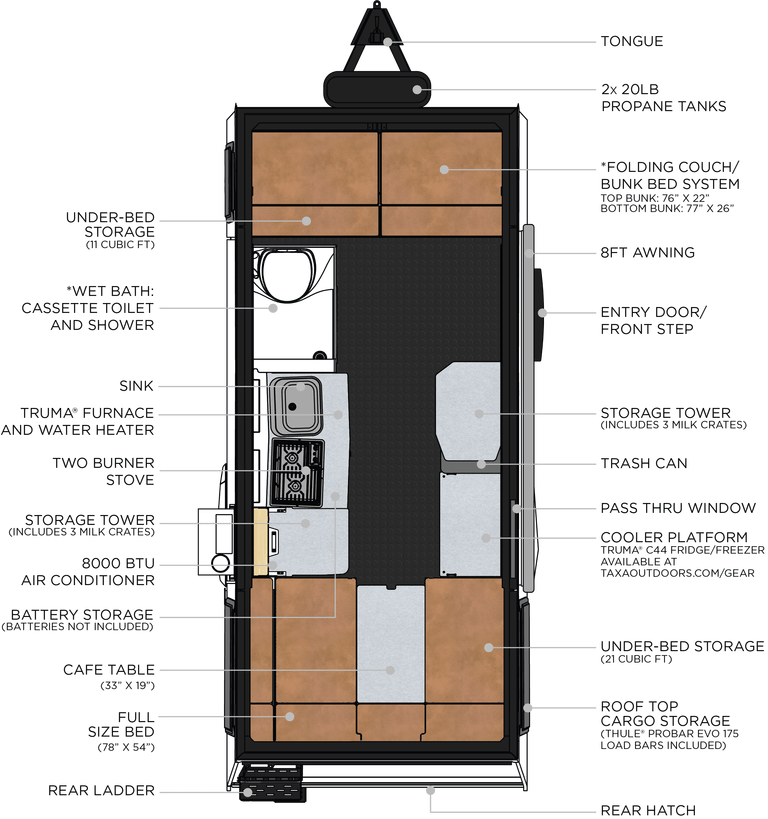

Full Feature List
- Powder-Coated Steel Chassis
- 2,000 lb Tongue Jack
- Torsion Axle Suspension with Electric Brakes
- 15″ Alloy Wheel with All-Terrain Tires (5 year manufacturer warranty)
- 15″ Steel Spare Wheel with All-Terrain Tire
- Powder Coated Steel Gravel Guards
- Quad Stabilizer Jacks
- Laser Cut Powder Coated Steel Skeleton
- Kynar-Painted Aluminum Composite Panels

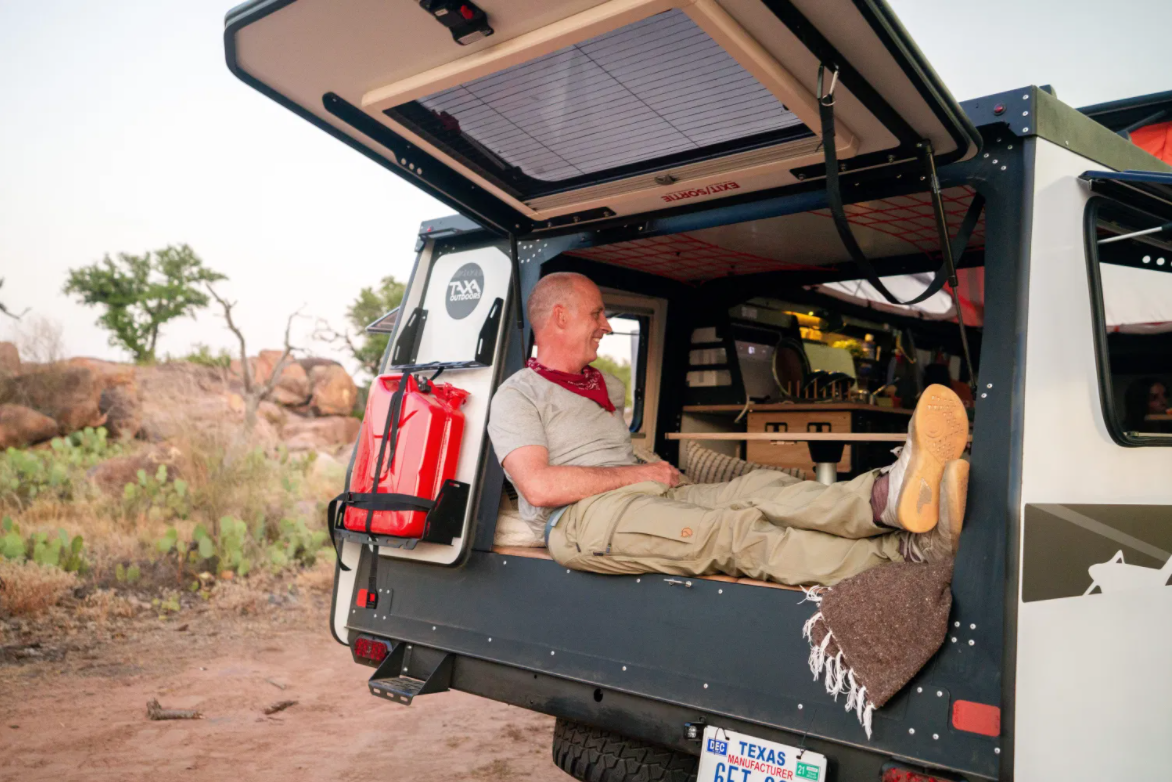

- Rear Hatch for Access & Ventilation
- Pop-up Roof with Stainless Steel Scissor Hinge

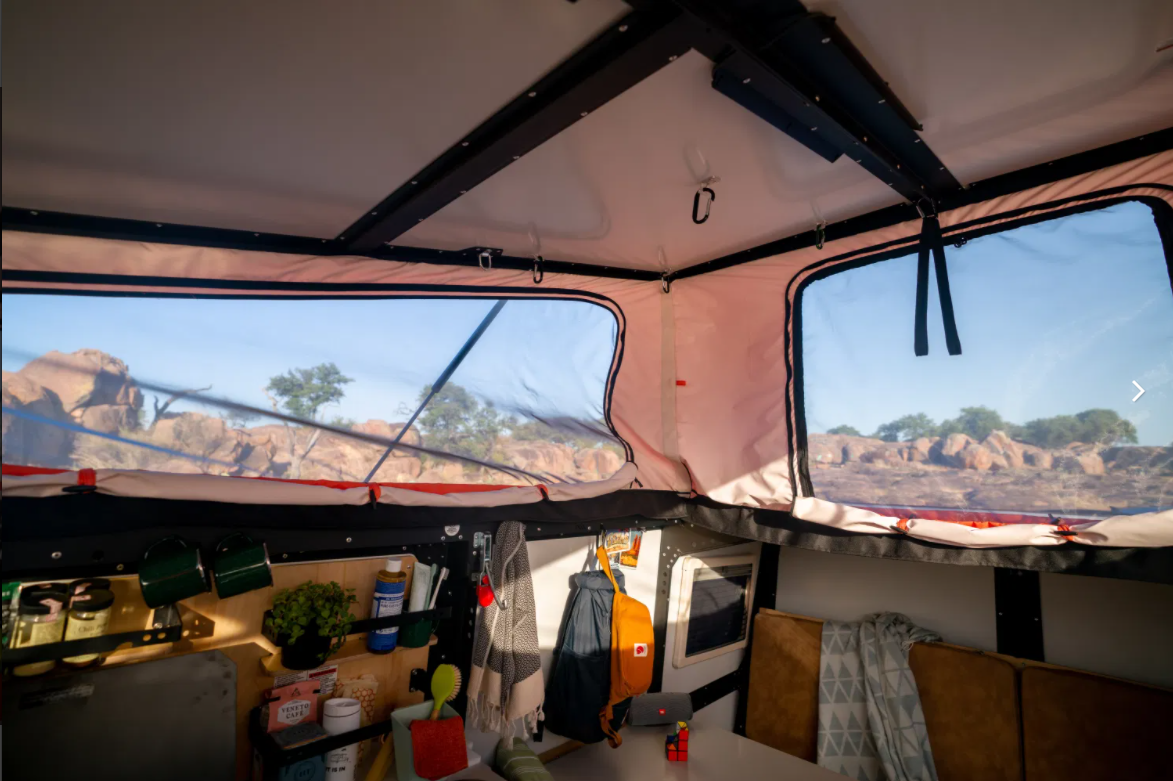

- Recycled Ripstop Polyester Tent Side with 4 Mesh Windows
- Six Acrylic, Insulated Windows with Screens & Shades
- Roof Tracks for Rack Options
- THULE® ProBar Evo 175 Adjustable Load Bars
- Rear Ladder Steps to Roof Storage
- Large 8ft Patio Awning
- 20 Gallon Fresh Water Tank
- 22 Gallon Grey Water Tank
- Exterior Hot & Cold Shower
- Liquid Propane (2x 20 lb) Tanks with Cover
- LED Exterior Lighting
- Pre-Wired Solar Input
- City Water Inlet
- License Plate Bracket with LED Light
- 12V Accessory Outlet (Exterior)
- Built in TAXA Bottle Opener
- 1″ Plywood Deck with ABS Laminate
- Non-slip Seamless Nickel Patterned Flooring
- 8,000 BTU Air Conditioner (110V)

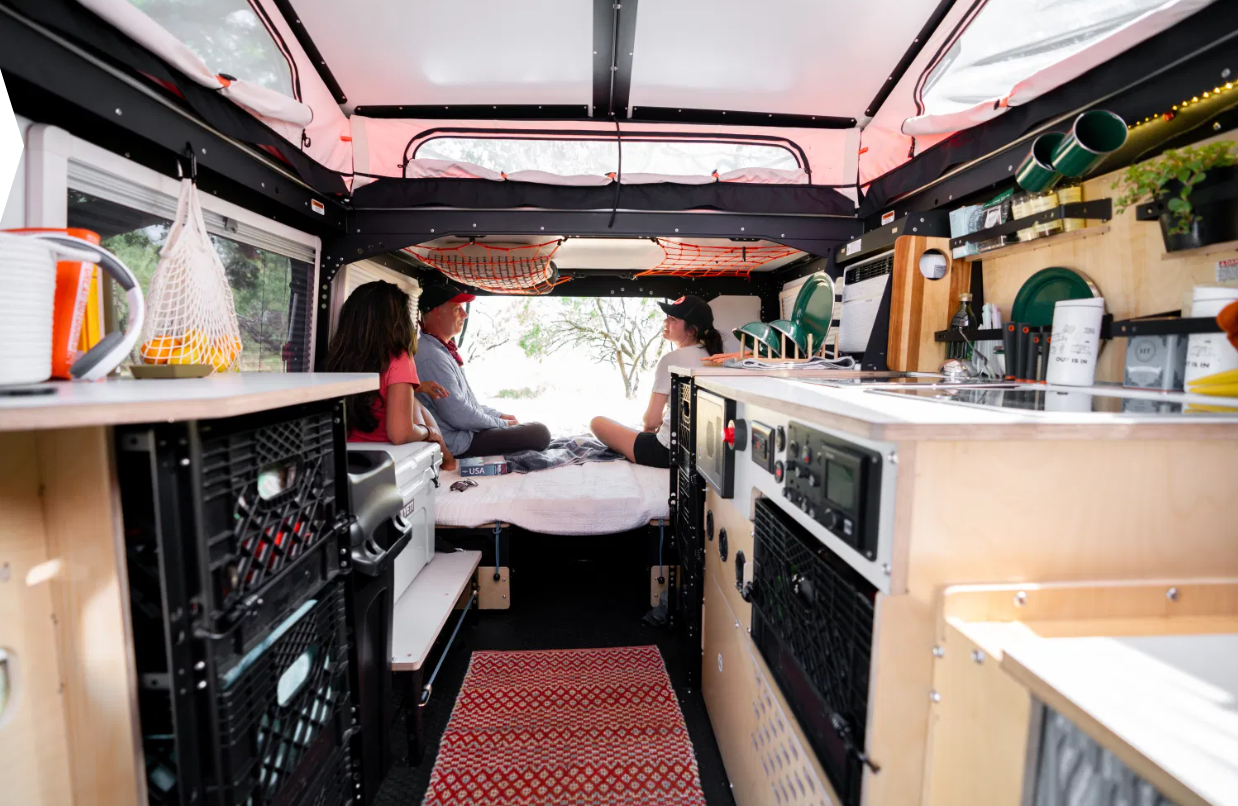

- Baltic-Birch Plywood Kitchen with Milk Crate Drawer
- High-Pressure Laminate Countertop
- HDPE Countertop Behind Sink & Stove
- 2-Burner Stove with Hinged Lid
- Sink with Hinged Lid
- Truma® Combi Eco Furnace & Water Heater System
- Two Storage Towers with Trio of Milk Crate Drawers
- Raised Cooler Platform
- 16 Gallon Trash Can

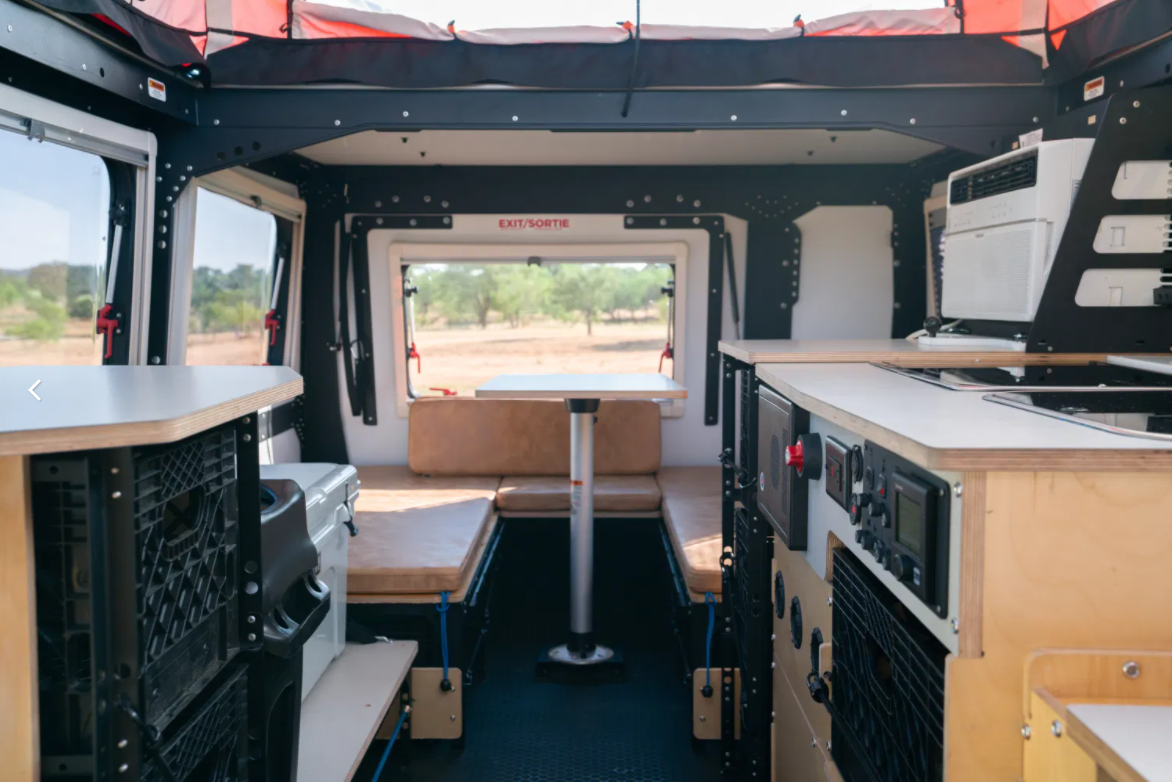

- Rotating/Nesting Cafe Table Top (33″ x 19″) with Aluminum Pedestal
- Full Size Bed with Under Bed Storage (21 Cubic Feet)
- LED Interior Lighting with Reading Light
- 12V Digital Voltmeter
- 12V Accessory Outlets (Interior)
- 12V USB Outlets
- Battery Compartment (Fits 2 Group 24 or Group 27 Batteries. Batteries not included.)
- Entry Screen Door
Compare Trailers
Travel Trailer Models Comparison Table |
 |
 |
 |
 |
| Sleeping Capacity up to | 5 | 6 | 8.5 | 8 |
| Beds | 4 | 4 | 4.5 | 4.5 |
| Bed dimensions | 74X60, 74X30, 74X30, 72X30 | 74X60, 74X30, 74X30, 78X45 | 74X60, 74X50, 74X50, 78X45, 58X40 | 74X60, 74X60, 74X60, 78X45, 58X40 |
| Fridge | ✓, 10 CU FT | ✓, 10 CU FT | ✓, 10 CU FT | ✓, 10 CU FT |
| Microwave | ✓ | ✓ | ✓ | ✓ |
| Stove/Oven | ✓ | ✓ | ✓ | ✓ |
| Sink | ✓, 2 BURNER STOVE | ✓, 2 BURNER STOVE | ✓ 3 BURNER STOVE W OVEN | ✓ 3 BURNER STOVE W OVEN |
| “Fresh Water Tank (gallon / liter)” |
26 gal | 26 gal | 40 gal | 40 gal |
| “Waste Water Tank, Grey (gallon / liter)” |
15 gal | 35 gal | 39 gal | 39 gal |
| “Waste Water Tank, Black (gallon / liter)” |
23 gal | 23 gal | 28 gal | 38 gal |
| Toilet Shower | ✓ | ✓ | ✓ | ✓ |
| Power Supply | 30 amp | 30 amp | 30 amp | 50 amp |
| Entertainment (Driver’s Cab) | 24″ TV / BLUETOOTH STEREO | 24″ TV / BLUETOOTH STEREO | 32″ TV / BLUETOOTH STEREO | 32″ TV / BLUETOOTH STEREO |
| Air conditioning – Living Area | 13.5K BTU AIR CONDITIONER | 13.5K BTU AIR CONDITIONER | 15K BTU AIR CONDITIONER | 15K BTU AIR CONDITIONER |
| Heating – Living Area | PROPANE FURNACE | PROPANE FURNACE | PROPANE FURNACE | PROPANE FURNACE |
| Awning | ✓ | ✓ | ✓ | ✓ |
| Fire Extinguisher | ✓ | ✓ | ✓ | ✓ |
| Length | 18′ | 22′ | 28′ | 34′ |
| Width | 6’9″ | 7’9″ | 8′ | 8′ |
| Height | 7′ | 7′ | 11’3″ | 11’3″ |
