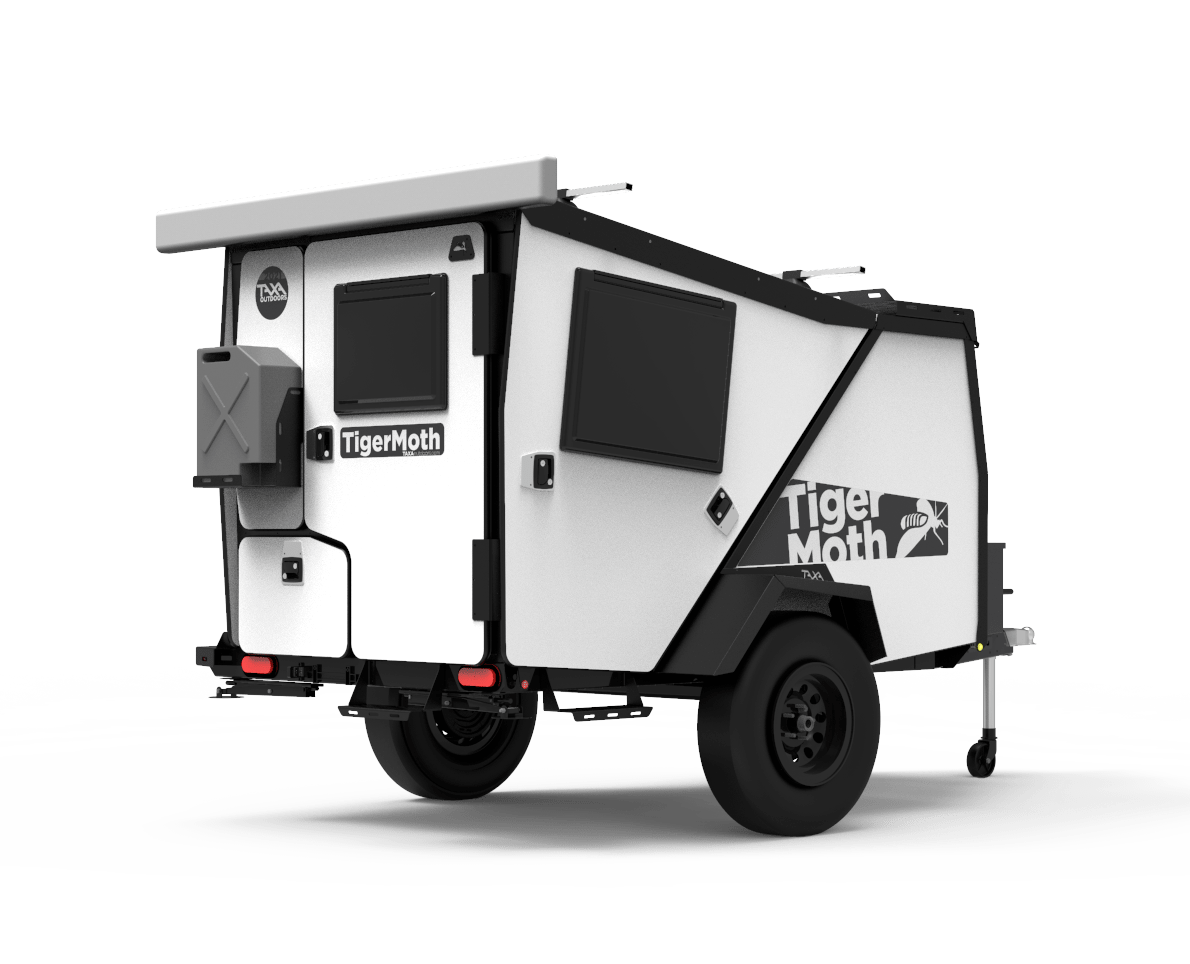

The ultimate adventure trailer.

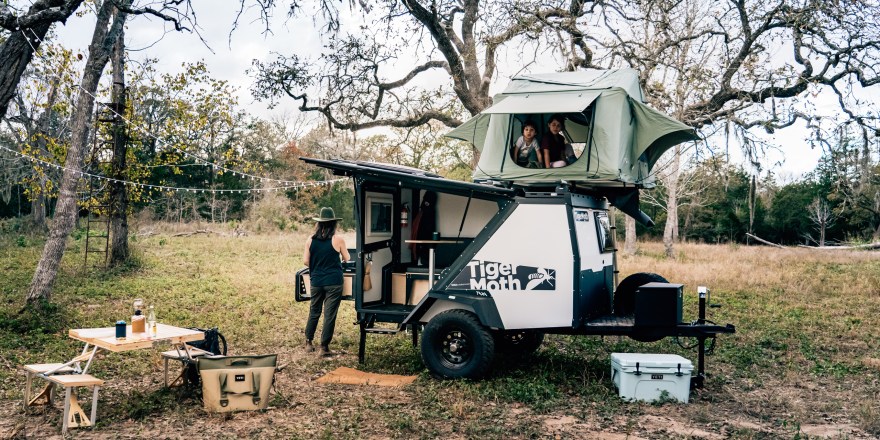

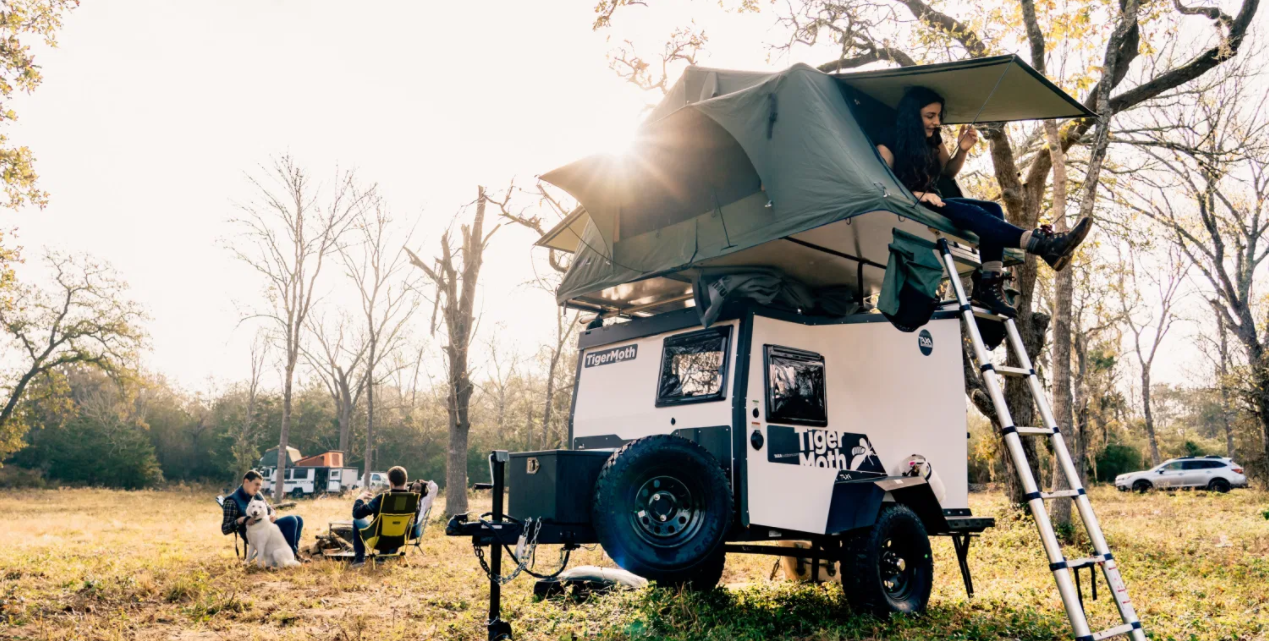

A habitat built for adventuring, TigerMoth has sleeping room for 2 adults (+3 with an optional rooftop tent), and features a slide out camp kitchen with a two-burner portable stove. Perfect for those who venture to the further reaches of nature. Whether you seek darker night skies, remote camping spots or just value the elegance of well-designed simplicity, see what unfolds.
TIGERMOTH Specifications
| Exterior Length | 12’9″ |
| Exterior Width | 6’7″ |
| Exterior Height | 6’8”(7’1” w/ Awning) |
| Interior Width | 4’7″ |
| Interior Height | 4’7″ to 3’9″ |
| Bed Dimensions (max width) | 80″x54″ |
| Fresh Water NATO Can | 5 gallon |
| Tires | 235/75R15 |
| Ground Clearance | 15″ |
| Tongue Height | 20″ |
| Tongue Weight (depends on loading) | 127 lbs |
| Dry Weight (includes standard features only) | 1,310 lbs |
| GVWR | 2,200 lbs |
| GAWR | 2,000 lbs |
| Cargo Capacity | 990 lbs |
| Habitat Capacity | 2 Adults (+RTT) |
| Aluminum Panels | Aluminum Alloy ASTM B 209 |
| Square Footage | 40 sq ft |

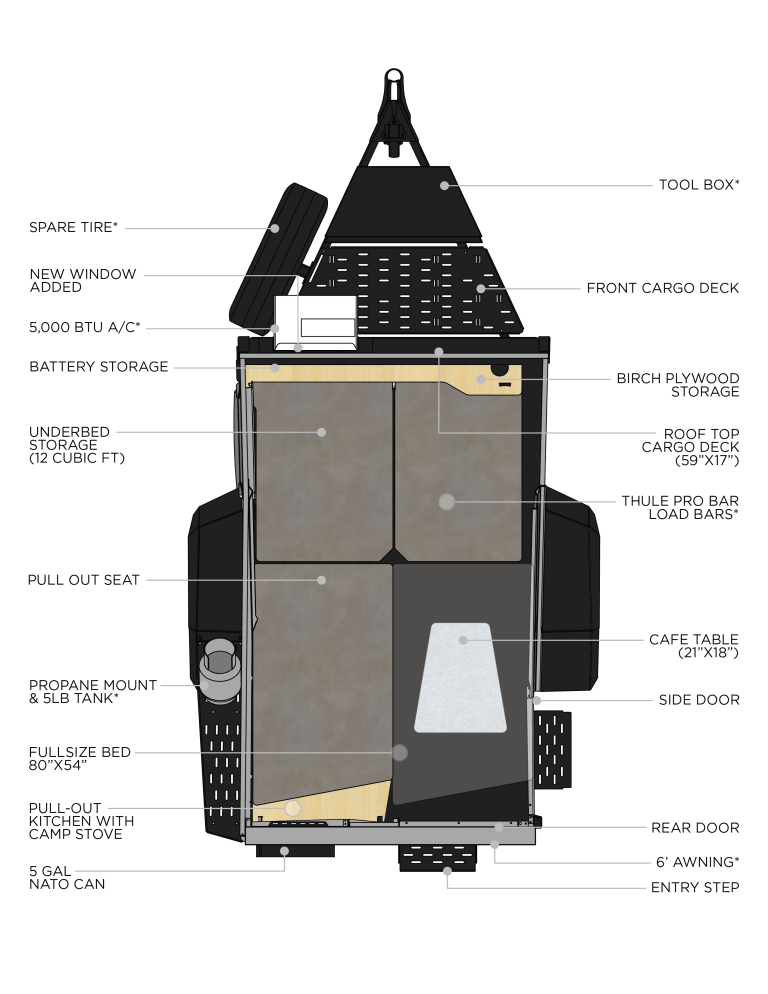

Full Feature List
- Powder-Coated Steel Chassis
- 2,000 lb Tongue Jack
- Torsion Axle Suspension with Electric Brakes
- 15″ Steel Wheel with All-Terrain Tires (5 year manuf. warranty)
- 15″ Steel Spare Wheel with All-Terrain Tire
- Powder-Coated Gravel Guard
- Dual Stabilizer Jacks
- Laser Cut Powder-Coated Aluminum Skeleton
- Kynar-Painted Aluminum Composite Panels
- Four Acrylic, Insulated Windows with Screens & Shades (New Window Added)
- 12V Roof Exhaust Fan
- Roof Tracks for Rack Options
- 200 lb Weight Capacity Cargo Deck
- Front Cargo Step (Sized for Coolers)
- 5 Gal NATO Can for Fresh Water & Holder
- LED Exterior Light
- Pre-Wired Solar Input
- License Plate Bracket with LED Light
- 12V Accessory Outlet (Exterior)
- 3/4″ Plywood Deck with ABS Laminate on Both Sides

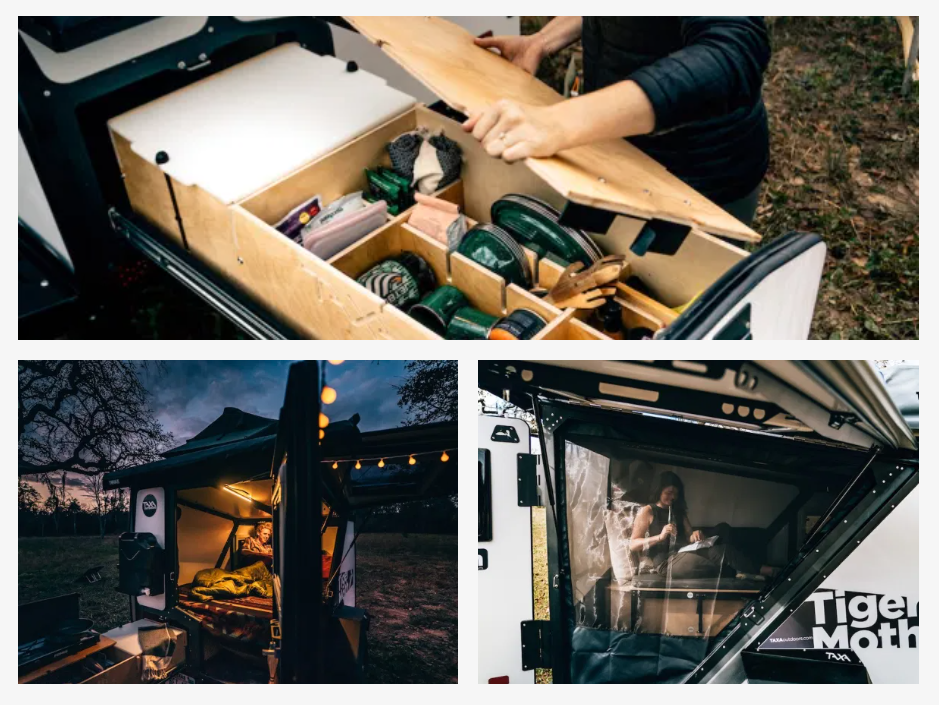

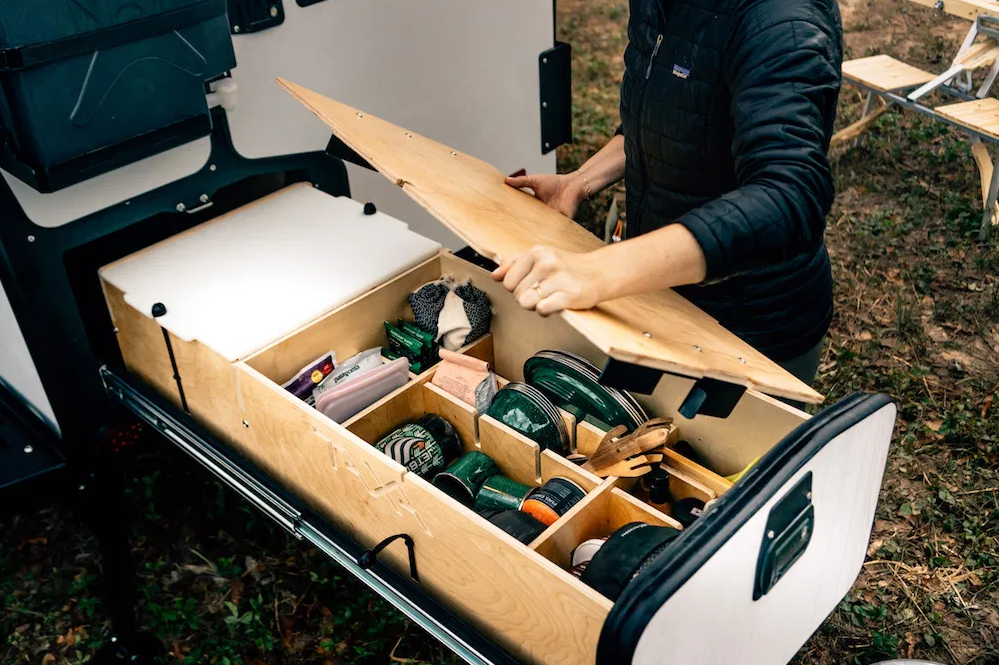

- Baltic Birch Plywood Slide Out Camp Kitchen with Portable Two-Burner Stove
- Cafe Table Top (21” x 18”) with Aluminum Pedestal

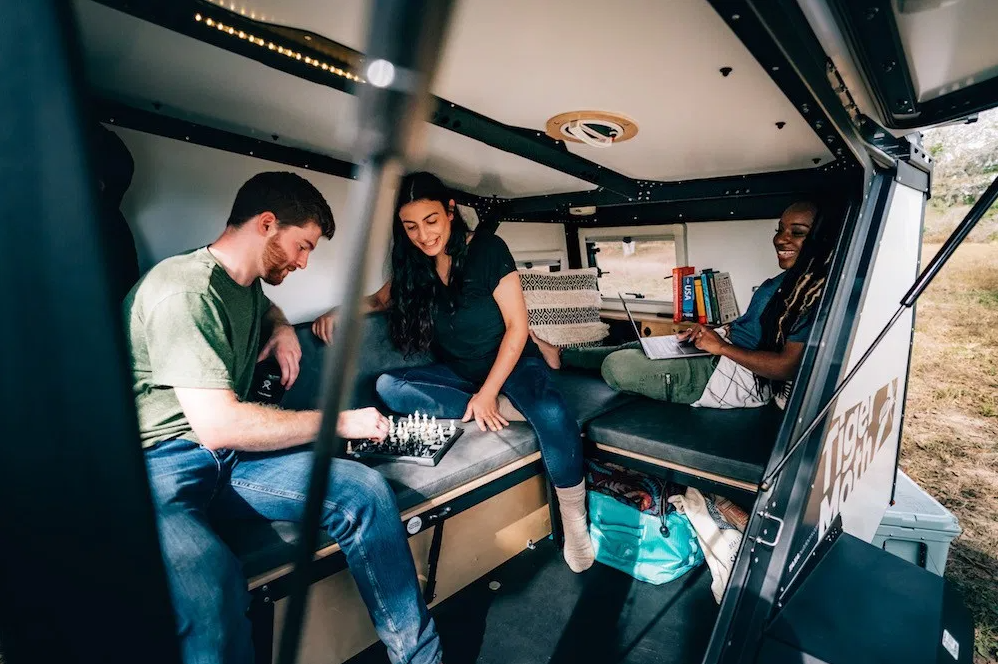

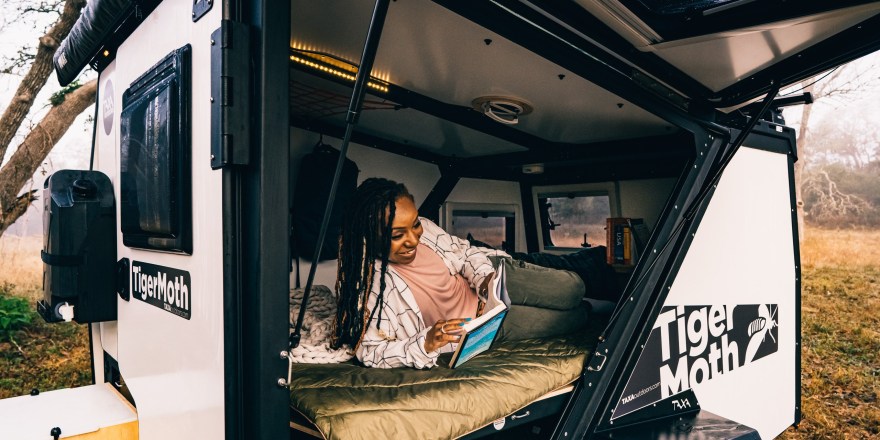

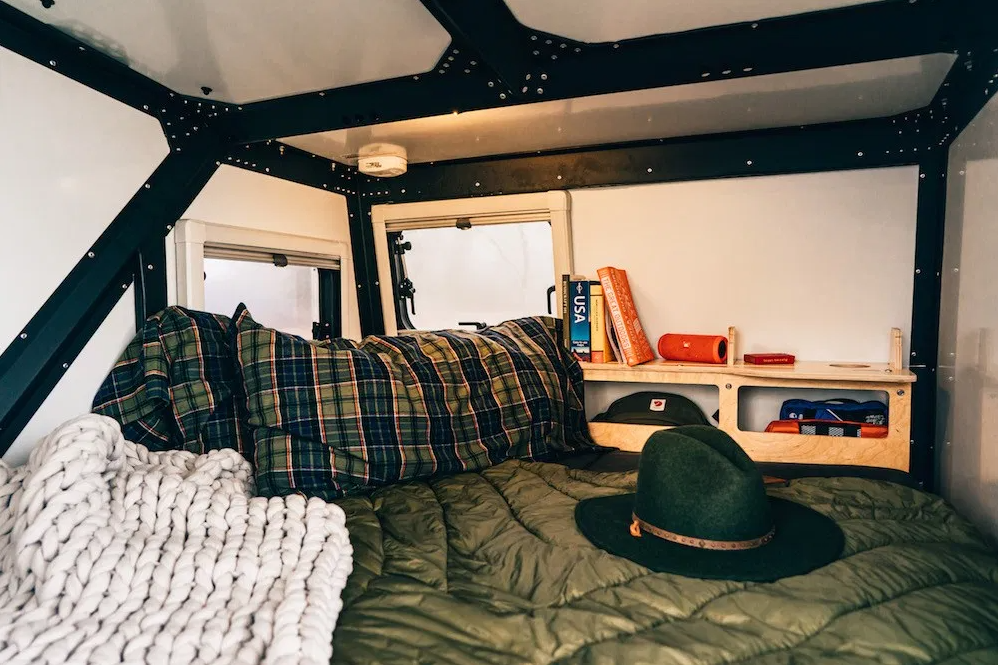

- Full Size Bed & Couch
- Under Bed Storage (12 cu. ft.)
- Birch Plywood Cabinetry
- LED Interior Lighting with Reading Light
- 12V Digital Voltmeter
- 12V Accessory Outlet (Interior)
- 12V USB Outlet
- Battery Compartment (Fits 2 Group 24 Batteries. Battery not included.)
Compare Trailers
Travel Trailer Models Comparison Table |
 |
 |
 |
 |
| Sleeping Capacity up to | 5 | 6 | 8 | 9 |
| Beds | 4 | 4 | 4.5 | 5 |
| Bed dimensions | 74X60, 74X30, 74X30, 72X30 | 74X60, 74X30, 74X30, 78X45 | 74X60, 74X50, 74X50, 78X45, 58X40 | 74X60, 74X60, 74X60, 78X45, 58X40 |
| Fridge | ✓, 10 CU FT | ✓, 10 CU FT | ✓, 10 CU FT | ✓, 10 CU FT |
| Microwave | ✓ | ✓ | ✓ | ✓ |
| Stove/Oven | ✓ | ✓ | ✓ | ✓ |
| Sink | ✓, 2 BURNER STOVE | ✓, 2 BURNER STOVE | ✓ 3 BURNER STOVE W OVEN | ✓ 3 BURNER STOVE W OVEN |
| “Fresh Water Tank (gallon / liter)” |
26 gal | 26 gal | 40 gal | 40 gal |
| “Waste Water Tank, Grey (gallon / liter)” |
15 gal | 35 gal | 39 gal | 39 gal |
| “Waste Water Tank, Black (gallon / liter)” |
23 gal | 23 gal | 28 gal | 38 gal |
| Toilet Shower | ✓ | ✓ | ✓ | ✓ |
| Power Supply | 30 amp | 30 amp | 30 amp | 50 amp |
| Entertainment (Driver’s Cab) | 24″ TV / BLUETOOTH STEREO | 24″ TV / BLUETOOTH STEREO | 32″ TV / BLUETOOTH STEREO | 32″ TV / BLUETOOTH STEREO |
| Air conditioning – Living Area | 13.5K BTU AIR CONDITIONER | 13.5K BTU AIR CONDITIONER | 15K BTU AIR CONDITIONER | 15K BTU AIR CONDITIONER |
| Heating – Living Area | PROPANE FURNACE | PROPANE FURNACE | PROPANE FURNACE | PROPANE FURNACE |
| Awning | ✓ | ✓ | ✓ | ✓ |
| Fire Extinguisher | ✓ | ✓ | ✓ | ✓ |
| Length | 18′ | 22′ | 28′ | 34′ |
| Width | 6’9″ | 7’9″ | 8′ | 8′ |
| Height | 7′ | 7′ | 11’3″ | 11’3″ |
